Waterproof ultra-long standby 4G GPS Tracker for Field of Rental Cars-GL06W
- GPS/BDS/GLONASS&LBS /Wifi
- Frequency : LTE FDD B2/3/4/5/7/8/28/66LTE TDD B38/40/41
- Battery : 5400mAh
- Working Mode With Long Connection
- Support : Track Query/Electronic Fence/Remote Upgrade /Timing /Disassemble the Alarm
- Long life :3-5 years
product description

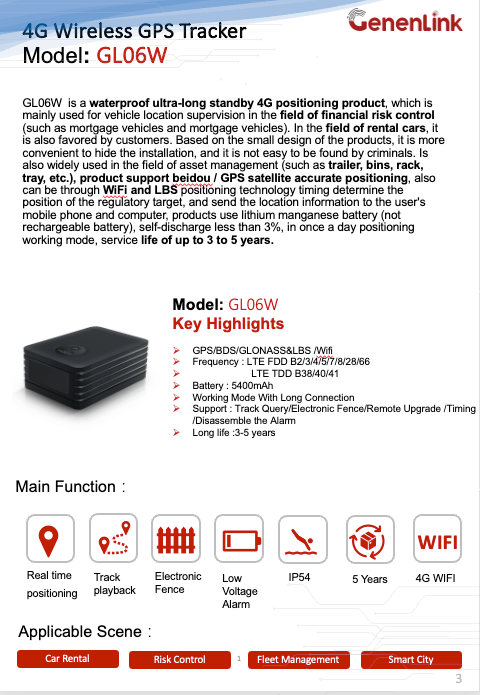

Waterproof ultra-long standby 4G GPS Tracker
GL06W is a waterproof ultra-long standby 4G positioning product, which is mainly used for vehicle location supervision in the field of financial risk control (such as mortgage vehicles and mortgage vehicles). In the field of rental cars, it is also favored by customers. Based on the small design of the products, it is more convenient to hide the installation, and it is not easy to be found by criminals. Is also widely used in the field of asset management (such as trailer, bins, rack, tray, etc.), product support beidou / GPS satellite accurate positioning, also can be through WiFi and LBS positioning technology timing determine the position of the regulatory target, and send the location information to the user’s mobile phone and computer, products use lithium manganese battery (not rechargeable battery), self-discharge less than 3%, in once a day positioning working mode, service life of up to 3 to 5 years.
1.1 Product Name
Product Name: 4G vehicle-mounted Beidou strong magnetic positioning terminal
Model：GL06W

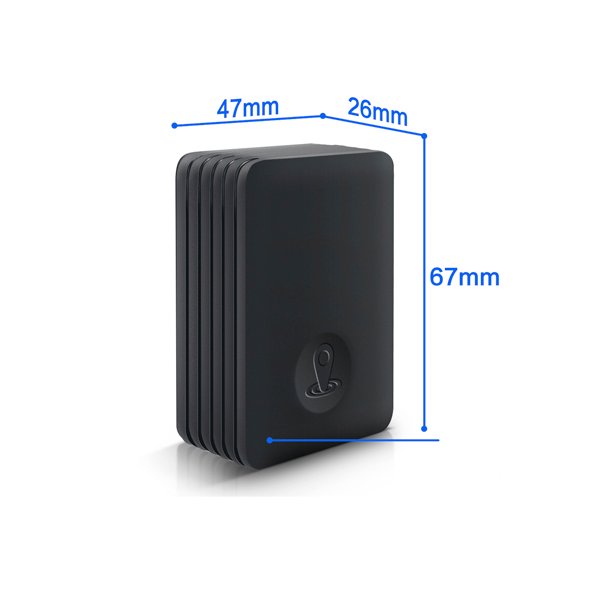

Product Specifications：67mm*47mm*26mm
Overall Weight :127g (Including Magnet)
Details :
| project | Specification parameters |
| working voltage | DC3.4V-4.35V |
| battery capacity | 5400mAh |
| working current | 3.2 mA @ 4 V (online standby)
33 mA @ 4 V (tracking mode) <10 uA @ 4 V (offline standby) |
| Dust and waterproof level | IP54 |
| The G-Senser gravity sensor | support |
| Product specifications and sizes | L67mm*W47mm*H26mm |
| Product shell material | ABS flame retardant |
| Box size | L12.5mm*W95mm*H35mm |
| weight of equipment | 127g |
| fixed position | Positioning method: GPS + BD satellite, WiFi, LBS
GNSS chip: Zhongke Micro AT6558R |
| positional error | GPS + BD satellite positioning: <10m
WIFI location: <300m LBS base station location: <2000m |
| CN | 4G Module-Latinas-LE270-LA-1D5-00-Canton and Tong
LTE FDD B2/3/4/5/7/8/28/66 LTE TDD B38/40/41 |
| GSM antenna | FPC antenna |
| SIM Card Specifications | Medium-size card (Micro SIM card: 15mm x 12mm) |
| communication mode | TCP |
| GPS specifications | ● Antenna type: built-in 18x18x2 ceramic antenna
● Recapture sensitivity: -154 dBm ● Tracking sensitivity: -160 dBm ● Positioning accuracy: about 5 m (open environment) |
| operating temperature range | -20℃~ +70℃ |
| Storage temperature range | -30℃ ~ +75℃ |
